Optical Phase Lock Loop with Tunable Frequency Offset

RIO’s Optical Phase Locked Loop (OPLL) System is based on the proven performance of RIO’s PLANEX™ product series, along with integrated high-speed phase lock loop electronics for easy setup, operation and diagnostics.

In addition to unrivaled reliability and performance, the PLANEX laser-based system provides exceptional value and ease-of-use with up to 5mW output power, very low RIN, ultra low phase noise and narrow linewidth, excellent wavelength stability, fast tuning and a user-selectable frequency offset tuning functionality.

The OPLL’s 19″ 2U rackmount system was designed with the customer’s need in mind: user-friendly, highly integrated and turn-key operation. This optical solution is positioned for reducing the development cycle time and allow for simple integration into advanced fiber optic sensing systems. External monitoring and control can be achieved via a Graphical User Interface (GUI) and a USB connection.

The OPLL’s total integrated solution ideally position this system for multiple applications where absolute accuracy, lifetime reliability over demanding field conditions, and high resolution are vital, such as remote sensing, distributed temperature, strain, or acoustic fiber optic monitoring, LIDAR and other precision metrology applications.

Rio Lasers Swirl Logo

Key Features of the Optical Phase Lock Loop

  • Single longitudinal mode
  • Ultra low phase noise and RIN
  • Two laser outputs with specified wavelengths
  • Narrow linewidth (< 15 kHz), long coherence length
  • 1528-1565nm, ITU-T DWDM wavelength or custom
  • Selectable frequency offset locking and monitoring
  • 8 – 14 GHz frequency locking range
  • Monitoring ports for optical signal, RF beat frequency and PLL lock signal
  • PM output fiber
  • Higher output power (optional)
  • Two operational modes: step tuning and sweep
  • 2U 19” rackmount – digital controller
Rio Lasers Swirl Logo

Performance Highlights

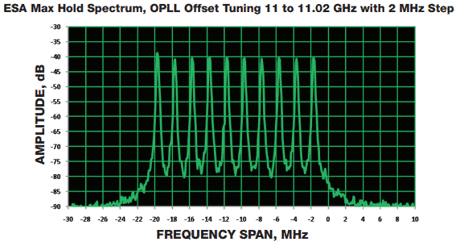

OPLL ESA Max Hold Spectrum
OPLL Laser Performance Table
Rio Lasers Swirl Logo


  • Brillouin (BODTA/BOTDR)
  • Distributed Temperature and Strain (DTSS)
  • Tunable heterodyne source
  • LIDAR and remote sensing
  • Testing of high speed optical receivers
  • Metrology
  • RF and microwave photonics
