PLANEX 1064 nm Laser Diode

A high performance narrow linewidth single frequency laser capable for OEM applications suitable for volume production

The 1064 nm PLANEX™ laser product is high performance and industry-proven single frequency External Cavity Lasers (ECL) based on RIO’s proprietary planar technology – PLANEX™. The PLANEX laser consists of a gain chip and a planar lightwave circuit (PLC) that includes a Bragg grating. The coupling of these components forms a cavity with significant benefits: with up to 20 mW output power, very low RIN, low phase noise and narrow linewidth, and very low wavelength sensitivity to bias current and temperature.

The 1064 nm PLANEX’s industry-standard footprint 14-pin butterly package, mounting pattern and electrical connections make it an easy drop-in replacement for existing designs. RIO’s PLANEX lasers are the next generation of optical solutions – combining the high performance of long cavity fiber lasers with the low cost, simplicity and Telcordia GR-468 reliability qualified technology platform semiconductor lasers.

The 1064 nm PLANEX’s higher output power, low noise and narrow linewidth ideally position this semiconductor optical solution for multiple applications where absolute accuracy, lifetime reliability over demanding field conditions, and high resolution are vital, such as seeding of fiber and solid state lasers, Second harmonic Generation (SHG), Optical Parametric Oscillators (OPO), laser spectroscopy, LIDAR and other precision metrology applications.

Rio Lasers Swirl Logo

Key Features of the 1064 nm PLANEX™ External Cavity Laser:

  • Single longitudinal mode
  • Center wavelength: 1064 nm
  • Narrow linewidth, long coherence length
  • Low phase noise
  • Wavelength tunability
  • Excellent SMSR
  • Excellent wavelength stability over life
    and temperature
  • Small form factor, 14 pin butterfly
  • Low power dissipation
  • SMF and PM fiber pigtail options
  • RoHS compliant
Rio Lasers Swirl Logo

Performance Highlights

Phase Noise, 1 m OPD

1064 Planex Phase Noise Graph

Intensity Noise

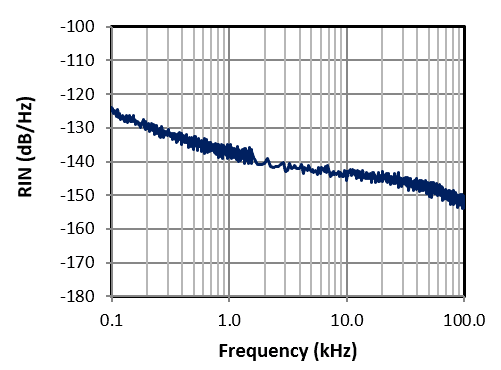

1064 Planex Intensity Noise Graph
1064 Planex Laser Performance Table
1064 Planex Spectral Performance Table
Rio Lasers Swirl Logo


  • Seeding of fiber and solid state lasers
  • Second Harmonic Generation (SHG)
  • Optical Parametric Oscillators (OPOs)
  • Laser spectroscopy
  • Metrology
