ORION 1064 nm Laser Module

A compact high performance proven OEM narrow linewidth single frequency laser source for OEM applications

The 1064 nm ORION™ laser module builds upon the proven performance of RIO’s game-changing PLANEX™ product series. In addition to unrivaled reliability (Telcordia GR-486 qualified technology platform) and robustness, the ORION laser modules provide superior value with up to 20 mW output power, very low RIN, low phase noise and narrow linewidth, exceptional wavelength stability.

The ORION’s packaging was designed with the customer’s need in mind: highly integrated, small form factor and self-contained module. This optical solution is positioned for reducing the development cycle time and allow for simple integration into advanced fiber optic systems. External monitoring and control can be achieved via SPI, RS-232 or RS-485 standard interfaces.

The 1064 nm ORION’s higher output power, low noise and narrow linewidth ideally position this semiconductor optical solution for multiple applications where absolute accuracy, lifetime reliability over demanding field conditions, and high resolution are vital, such as seeding of fiber and solid state lasers, Second Harmonic Generation (SHG), Optical Parametric Oscillators (OPO), laser spectroscopy, LIDAR and other precision metrology applications.

Rio Lasers Swirl Logo

Key Features of the 1064 nm RIO ORION™ Laser Module

  • Single longitudinal mode
  • Center wavelength: 1064 nm
  • Narrow linewidth, long coherence length
  • Low phase noise
  • Wavelength tunability
  • Excellent SMSR
  • CW and fast frequency modulation options
  • Excellent wavelength stability over life and temperature
  • Small form factor
  • Low power dissipation
  • SMF and PM fiber pigtail options
  • RoHS compliant
Rio Lasers Swirl Logo

Performance Highlights

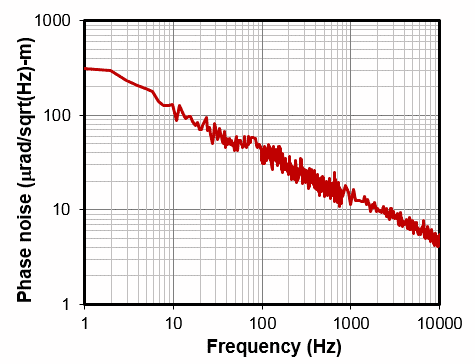

Phase Noise, 1 m OPD

1064 Orion Laser Phase Noise Performance Graph

Intensity Noise

1064 Orion Laser Intensity Noise Graph
1064 Orion Laser Performance Table

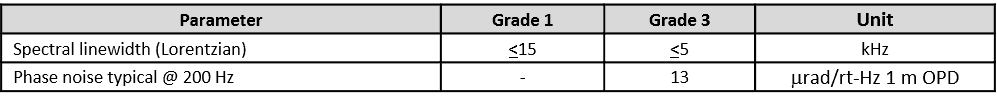

1064 Orion Laser Spectral Performance Table
Rio Lasers Swirl Logo


  • Seeding of fiber and solid state lasers
  • Second Harmonic Generation (SHG)
  • Optical Parametric Oscillators (OPOs)
  • Laser spectroscopy
  • Metrology
